FREESTYLE PESTICIDES · LATIN AMERICA

Robust, modular and automated pesticide clean-up.

FREESTYLE combines non-dispersive QuEChERS, GPC, SPE, EVAporation and Direct Injection to reduce manual work and standardise extracts for LC-MS/MS and GC-MS/MS.

DESIGN MY WORKFLOW

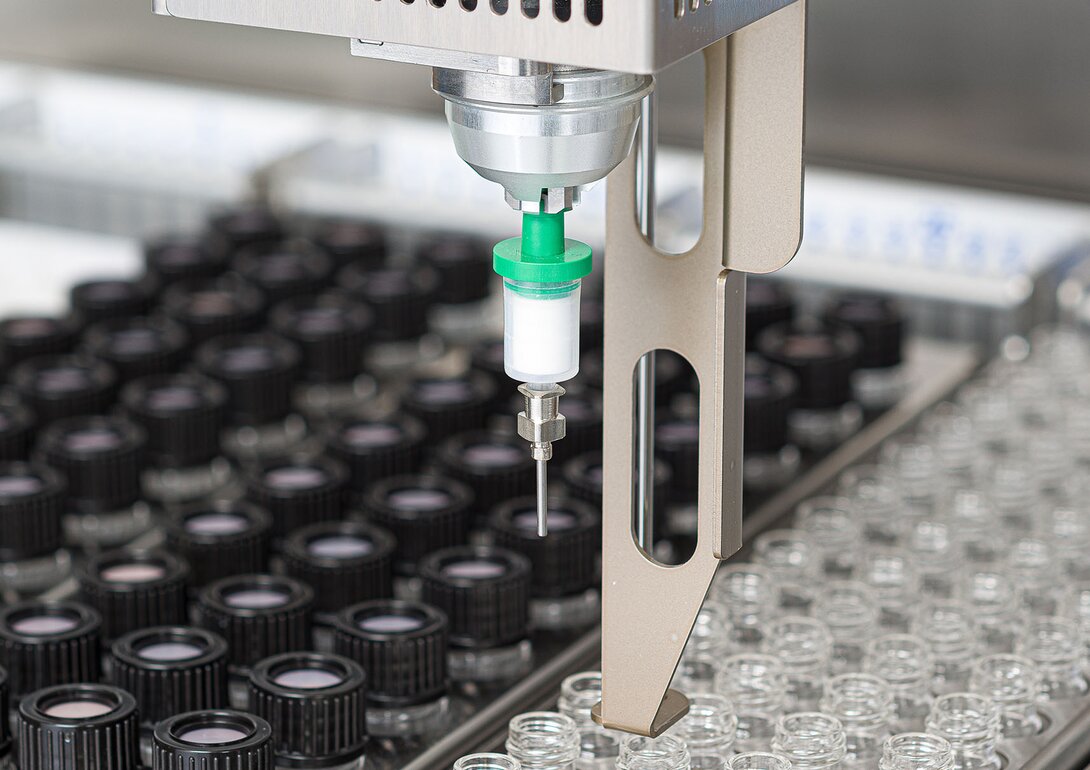

LCTECH FREESTYLE QuEChERS processing an automated pesticide column

FOOD · FEED · COMPLEX MATRICES

Matrix-specific columns. A scalable robotic platform.

The LCTECH approach applies non-dispersive column clean-up to a previously prepared extract. Pesticide I is intended for fruit and vegetables, Pesticide II for tea, spices and hops, and Pesticide III for matrices containing more than 10% fat.

QuEChERS

Automated clean-up in approximately 10 minutes, including conditioning, loading and elution.

Direct Injection

Optional online LC connection allows clean-up and the chromatographic cycle to overlap.

GPC / SPE / EVA

A complementary modular route for fatty and complex matrices or established GPC methods.

AUTOMATED COLUMNS · FREESTYLE ONLY

The correct column follows the matrix.

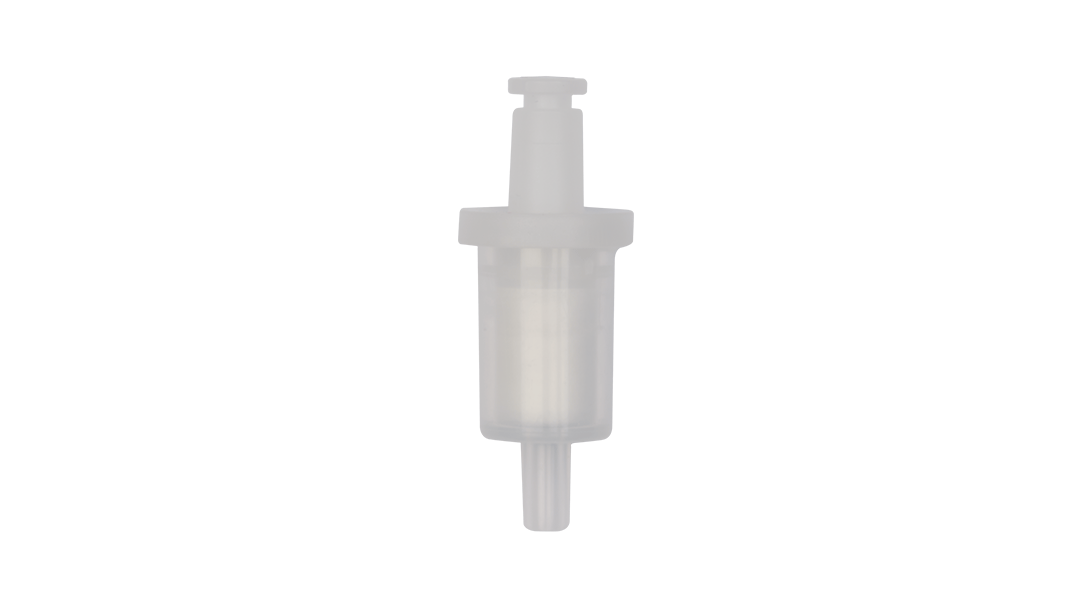

LCTECH automated Pesticide I column P/N 16301

FRUIT · VEGETABLES

Pesticide I — automated

For FREESTYLE QuEChERS only. 250 units. P/N 16301.

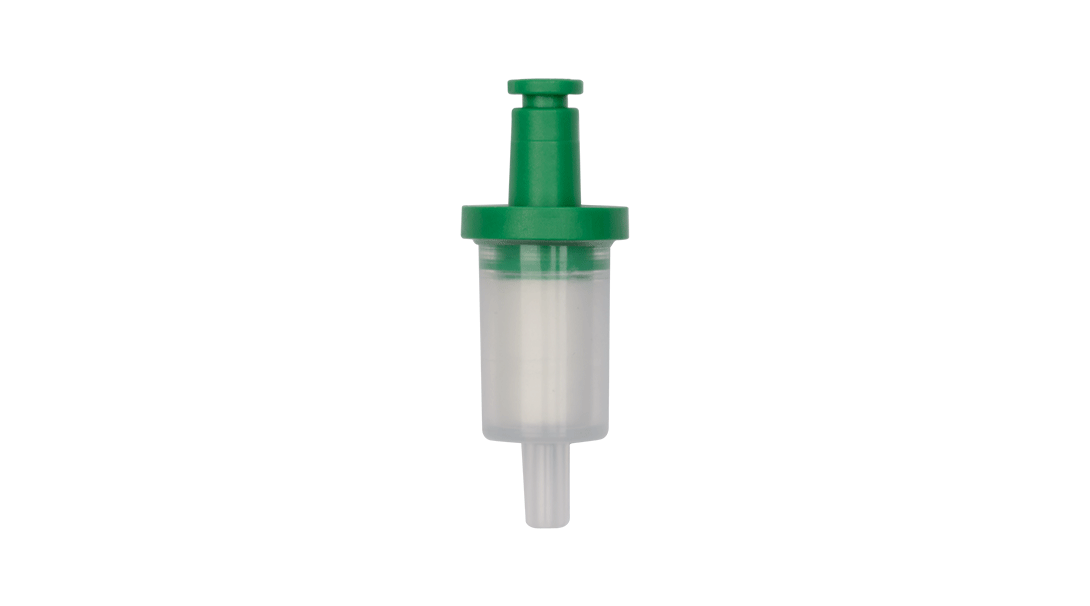

Green LCTECH automated Pesticide II column P/N 16683

TEA · SPICES · HOPS

Pesticide II — automated

For FREESTYLE QuEChERS only. 250 units. P/N 16683.

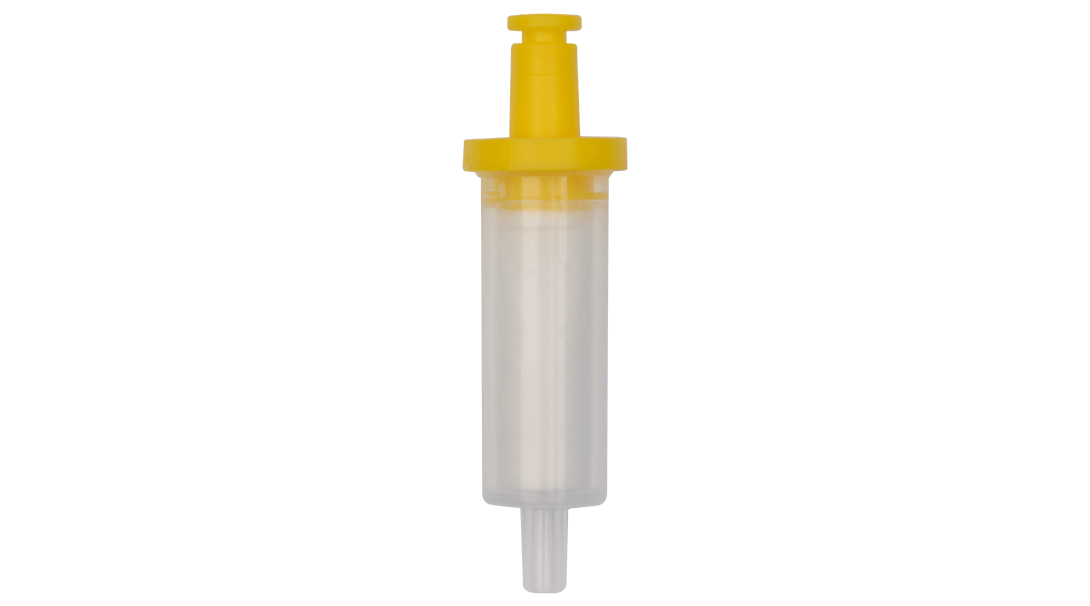

Yellow LCTECH automated Pesticide III column P/N 16685

FAT > 10%

Pesticide III — automated

For FREESTYLE QuEChERS only. 250 units. P/N 16685.

MANUAL COLUMNS

Manual evaluation before automation.

Manual versions are supplied in packs of 50 columns.

FRUIT · VEGETABLES

Pesticide I — manual

P/N 19853.

TEA · SPICES · HOPS

Pesticide II — manual

P/N 19854.

FAT > 10%

Pesticide III — manual

P/N 19855.

KATÁLYSIS + LCTECH

Tell us about your pesticide workflow.

Share matrix, extraction, instrument, throughput and country. We will configure the FREESTYLE platform and columns around the application.

CONTACT THE TECHNICAL TEAM
